Make: Daewoo
Type: MACHINING CENTERS, HORIZONTAL

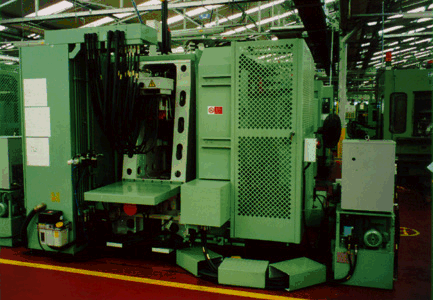

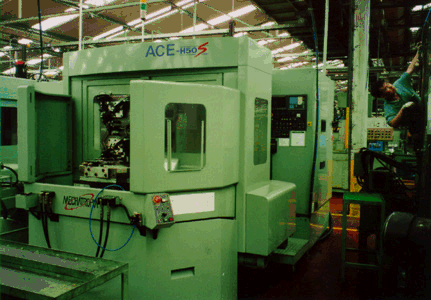

DAEWOO MODEL ACE-H50S CNC PRECISION HORIZONTAL MACHINING CENTER
New: 1998
General Specifications:
Travels- X axis 31.5"
Y axis25.6"
Z axis25.6"
Pallet table size 19.7 x 19.7"
Number of pallets 2
Allowable load 1,323 Lbs.
Indexing 1 Deg.
T-slots-number/size NO.5/0.866"
Changing method Rotary shuttle
Pallet change time 30 Sec. Spindle:
Spindle nose to pallet center 5.9-31.5"
Spindle center to pallet top 2.0-27.6"
Spindle taper ISO 50
Spindle speed range 25-5000 RPM
Gear ranges 3
AC Spindle motor (30 min.) 20 HP
Max. spindle torque 600ft-Lbs.
Automatic tool changer:
Number of tools 40
Tool shank BT 50
Max. tool diameter 5.3/9.8"
Max. tool length 15.7"
Max. tool weight 55 Lbs.
Tool change time ( tool to tool ) 6 Sec. Motion:
Rapid traverse X and Z axes 590 IPM
Y axis512 IPM
Cutting feed 0.04-197 IPM
Least command increment 0.0001"
Servo motor: X axis 5 HP
Y axis4 HP
Z axis4 HP
Ball screw dia.: X and Z axis 1.6"
Max. feed thrust X and Z axis 4,157 Lbs.
Machine height 120" Floor space L X W 118 x 204"
Machine weight 27,600 Lbs.
Amperage requirements 140 AMPS
Equipped With
Fanuc OM CNC Controls
Turbo hinge-type chip conveyor
(42" discharge height)
Automatic tool changer 40 position
Automatic pallet changer
Dual screw type conveyors
Full chip covers
Flood coolant system
Flood and through-spindle coolant
175 Multistage centrifugal pump
Hydraulic unit with refrigerated oil cooler
Telescopic covers
Work light
Automatic lubrication system
Operator call light
Work end and alarm signal lights
Spindle load meter
Leveling pads
Parts list and electrical drawings
Operation & maintenance manual Shower/Coolant
***NOTE: Very Low Hours
*** WAS $135,000.00
$$ Price Upon Request $$
